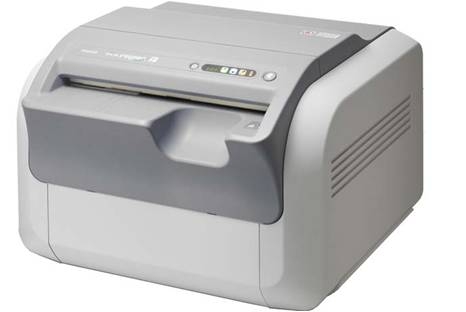

FCR Prima T2

Extremely fast processing in a compact body streamlines diagnosis
This compact table-top reader unit has outstandingly high-speed processing to challenge the common misconception of CR.

FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2 FCR Prima T2

Product detail of FCR Prima T2

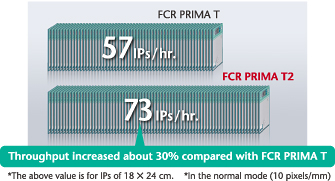

High-speed processing

FCR PRIMA T2 is a table-top reader unit which boasts a world-class high processing speed of 73 IPs/hour.In the high speed mode (5 pixels/mm), throughput is enhanced almost 70% compared with FCR PRIMA T (only for IPs of 14″ × 17″ and 14″ × 14″ ). As with all Fujifilm equipment FCR PRIMA T2 is easy to operate. It will help reduce patient waiting time and greatly increase the efficiency of examination workflow.

Space-saving design

FCR PRIMA T2, with its light and compact table top design, can be placed on a desk, shelf or anywhere space is limited. As this is a fully digital reader, neither a darkroom nor automatic processor is required. FCR PRIMA T2 can always be installed in the space formally used by a chemistry based processor.

Stable high-quality images

Although this is a compact machine its excellent image quality is the same as that produced by the rest of the FCR range. Image Intelligence™, Fujifilm's proprietary image processing technology, enhances image contrast and sharpness, without any deterioration of details. FCR PRIMA T supports accurate diagnosis by offering stable and optimized image quality.

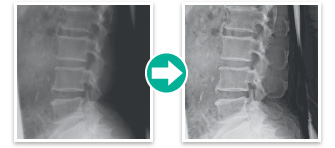

MFP (Multi-Frequency Processing)*
Enhances FCR images. All diagnostic scopes will be enhanced except for noise. * Optional Software

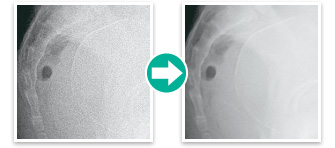

FNC (Flexible Noise Control)
Provides a non-grainy image by mainly isolating and suppressing the noise for the signal.

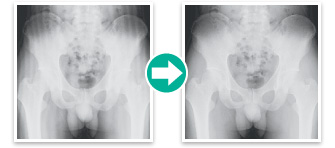

MFP (Multi-Frequency Processing)* Enhances FCR images. All diagnostic scopes will be enhanced except for noise. * Optional Software

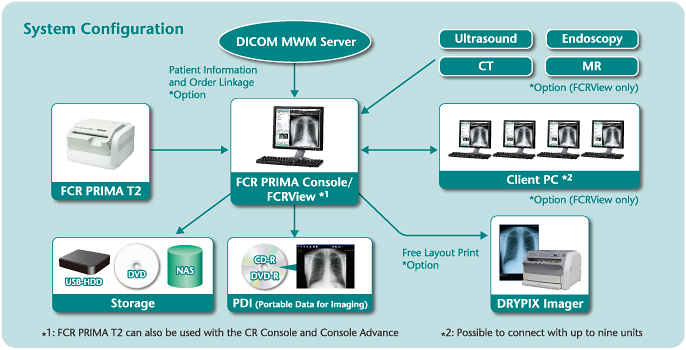

System Configuration

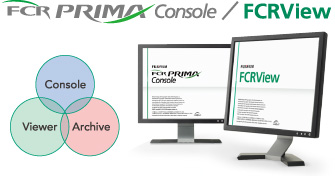

All-in-one workstation

FCR PRIMA Console and FCRView are an all-in-one viewers that turns your desktop into a multi-function workstation for all your radiographic imaging needs. You can initiate exposures, process and print your studies and backup patient information all within a single unit.

Specifications

Standard Components FCR PRIMA T2 Image Reader (Model: CR-IR 392)
Applicable Console FCR PRIMA Console, FCRView, CR Console, Console Advance
Main Connectable Imagers DRYPIX PRIMA/Smart/Lite/Plus/4000
Supplies
Imaging Plate ST-VI:
35 × 43 cm (14″ × 17″), 35 × 35 cm (14″ × 14″), 10″ × 12″, 8″ × 10″,
24 × 30 cm, 18 × 24 cm, 15 × 30 cm
IP Cassette Type CC:
35 × 43 cm (14″ × 17″), 35 × 35 cm (14″ × 14″), 10″ × 12″, 8″ × 10″,
24 × 30 cm, 18 × 24 cm, 15 × 30 cm
Time Required for IP Feed / Load Min. 49 sec.
Processing Capacity Up to 73 IPs/hr.
Reading Specification 10 pixels / mm, 5 pixels / mm
Time to Start on Display Min. 33 sec.
Time to Print on DRYPIX PRIMA Approx. 165 sec. (Approx. 155 sec.)* in case of 35 × 43 cm(14″ × 17″ )
Number of Stacker 1
Network 10 Base T / 100 Base TX

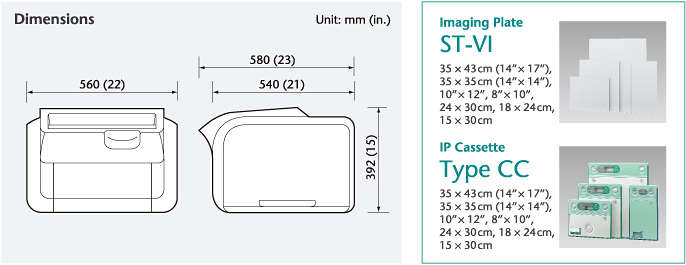

Dimensions (W × D × H) 560 × 540 × 392 mm (22″ × 21″ × 15″)
Weight 39 kg (86 lbs.)
Power Supply Conditions Single phase 50 - 60 Hz
AC 120 - 240 V ±10% 1.9 A (max)
Environmental Conditions
Operating Conditions:
  • Temperature: 15-30 °C
  • Humidity: 15-80% RH (No dew condensation)
  • Atmospheric pressure: 750-1060 hPa

This equipment is a Class 1 laser product (IEC60825-1:2001).
* In the high speed mode
